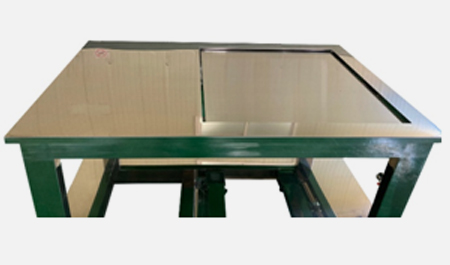

Desk type Vibration Isolation Platform
RSD Series
Main Features
- The vibration isolation platform is convenient for using computers, laboratory instruments, and various equipment through separate left and right working spaces
- A high-performance vibration isolation platform with automatic leveling system against vertical/horizontal vibration
- Manufactured with various materials (SUS material) according to the usage environment such as clean room/laboratory
- Providing various accessories according to customer requirements (Armrest, Drawers, Shelves, etc.)
Main Specification※ Custom Orders Available
| Model | RSD1290 – 5070 | RSD1410 - 7090 | RSD1810 - 5080 |
|---|---|---|---|
| Natural Frequency | Vertical : 1.2 ~ 1.5 Hz | ||
| Vibration isolation method | High Precision Diaphragm Air Spring | ||
| Damping method | Air Damping by Orifice | ||
| Leveling type | Auto Leveling System by 3-Point Leveling Valve | ||
| Top plate material | Using top plates with specially coated melamine or honeycomb | ||
| Vibration isolation area (mm) | 500 x 700 | 700 x 900 | 500 x 800 |
| Overall size (mm) | 1200 x 900 x 750 | 1400 x 1000 x 750 | 1800 x 1000 x 750 |
| Load weight (kg) | 50~250 | ||
| Operation | 4.0 ~ 5.0 kg/cm2 Compressed air or nitrogen gash | ||
Application
- Digital microscope, laser microscope, Interferometer tabletop type, Non-contact 3D measuring instrument
- Tabletop SEM, AFM, STM, XRF, Probe station, Thin-film thickness gauge
- Cell Injection, Cell Manipulation, Mass Spectrometer
