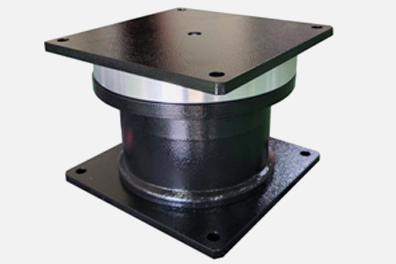

VIBRATION ISOLATION MOUNT
RSi Series
Main Features

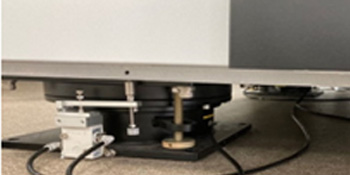

- It can be easily installed and used at the bottom of heavy equipment
- A vibration isolation control device suitable for X-Y stage transfer of high precision measurement/inspection equipment
- High precision repeatability and excellent leveling are possible even at high-speed transfer of the X-Y stage
- High performance vibration isolation function in vertical/horizontal direction
Main Specification※ Custom Orders Available
| Model | RSi Series |
|---|---|
| Natural Frequency | Vertical: 1.0~1.5Hz/ Oil Damper: 2.0~2.3Hz |
| Leveling type | Auto Leveling System by 3-Point Leveling Valve |
| Damping method | Air Damping by Orifice |
| Operation | 4 ~ 6kg/cm2 Compressed air or nitrogen gas |
Application
- Semiconductor/Large format display measurements/Inspection equipment
- High precision optical measurement/Laser equipment
- Other high precision measuring instruments
